color: grafito-plata brillo

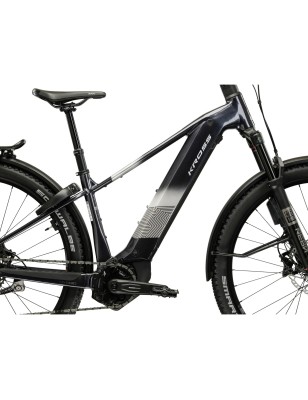

FRAME

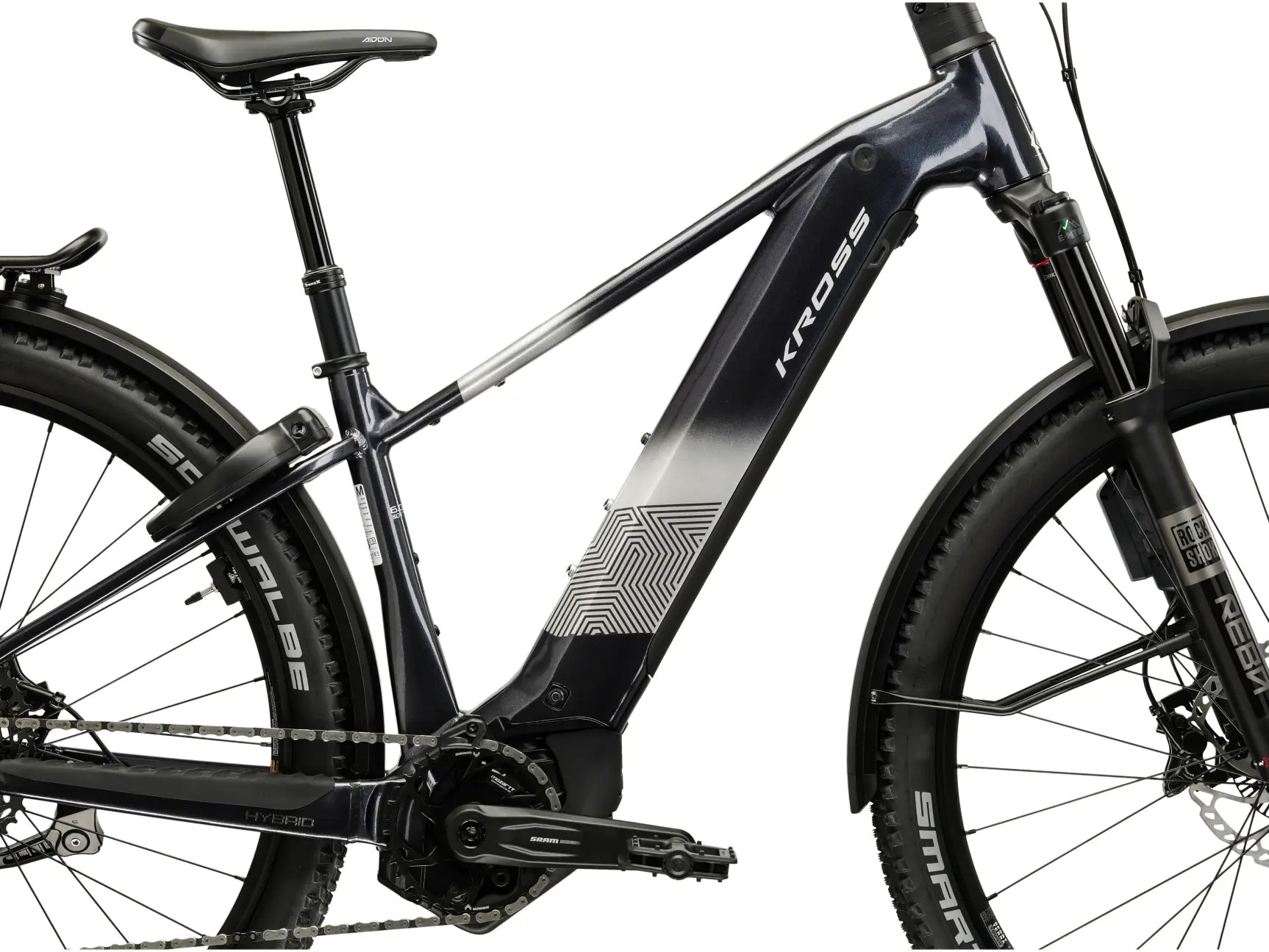

 FRAME ALUMINIUM

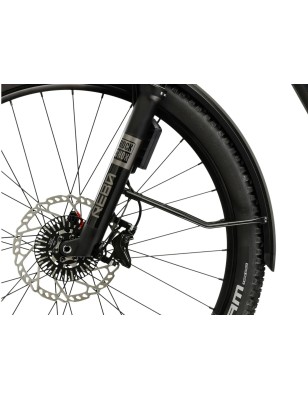

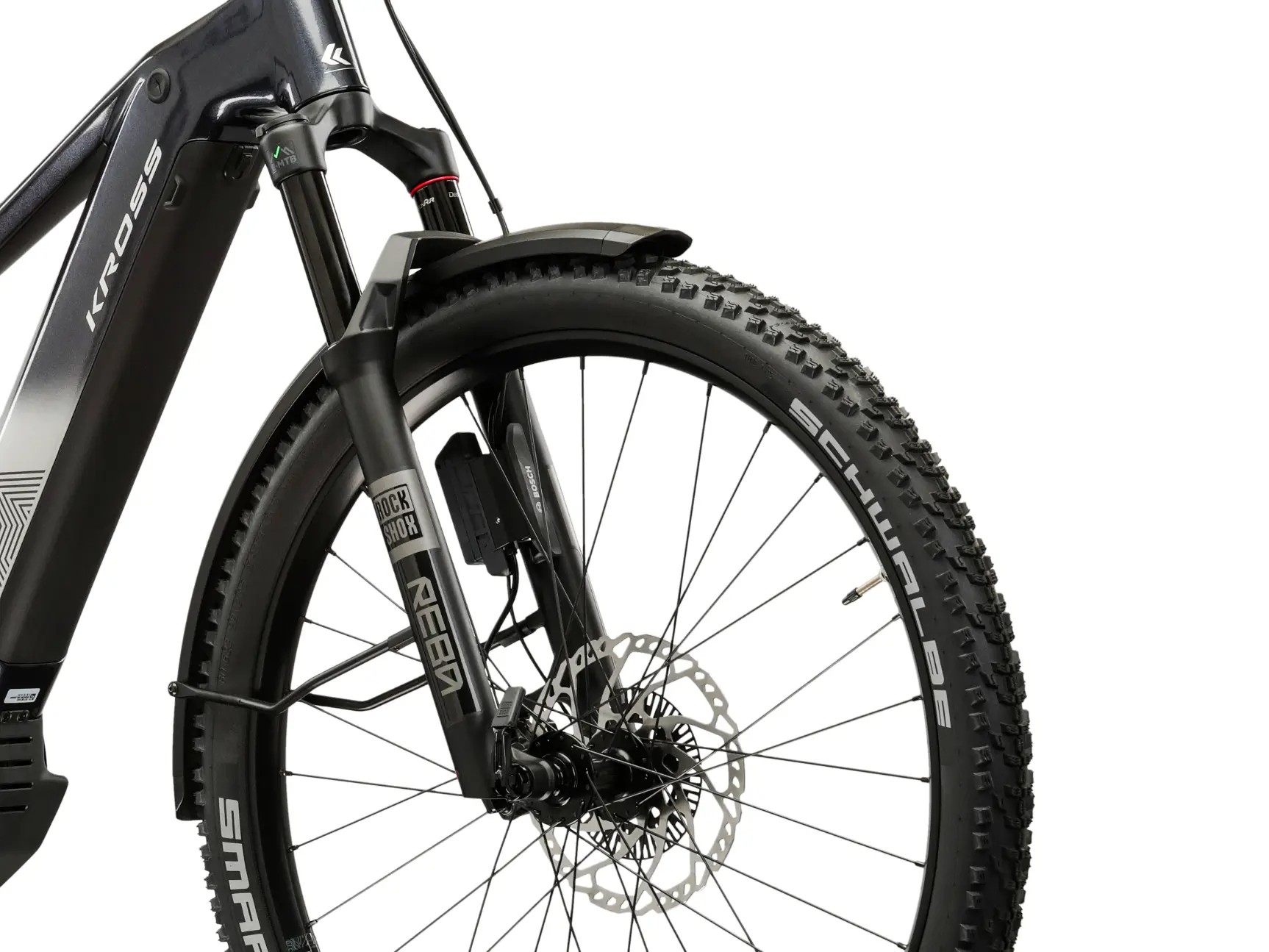

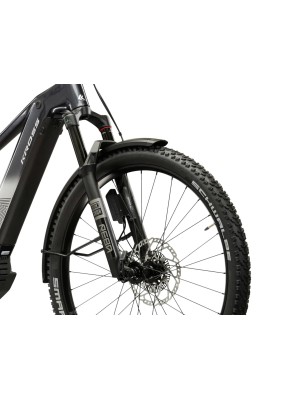

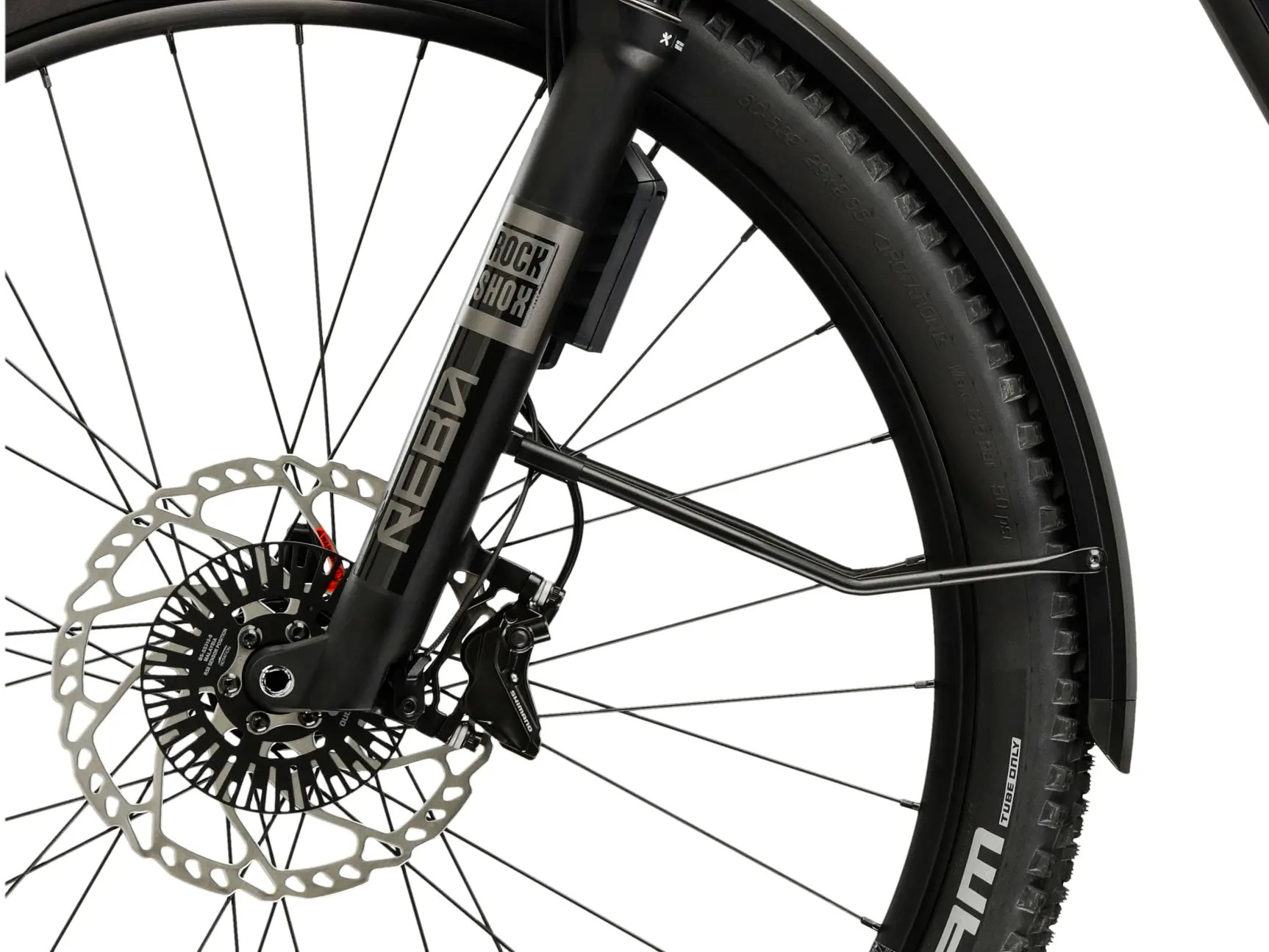

 FORK ROCK SHOX REBA RL

 FORK TRAVEL 100MM

 SIZES S(15”), M(16”), L(18”), XL(19")

 WHEEL DIAMETER 27,5”/29”

 DRIVETRAIN

 GEAR RATIO 1x12

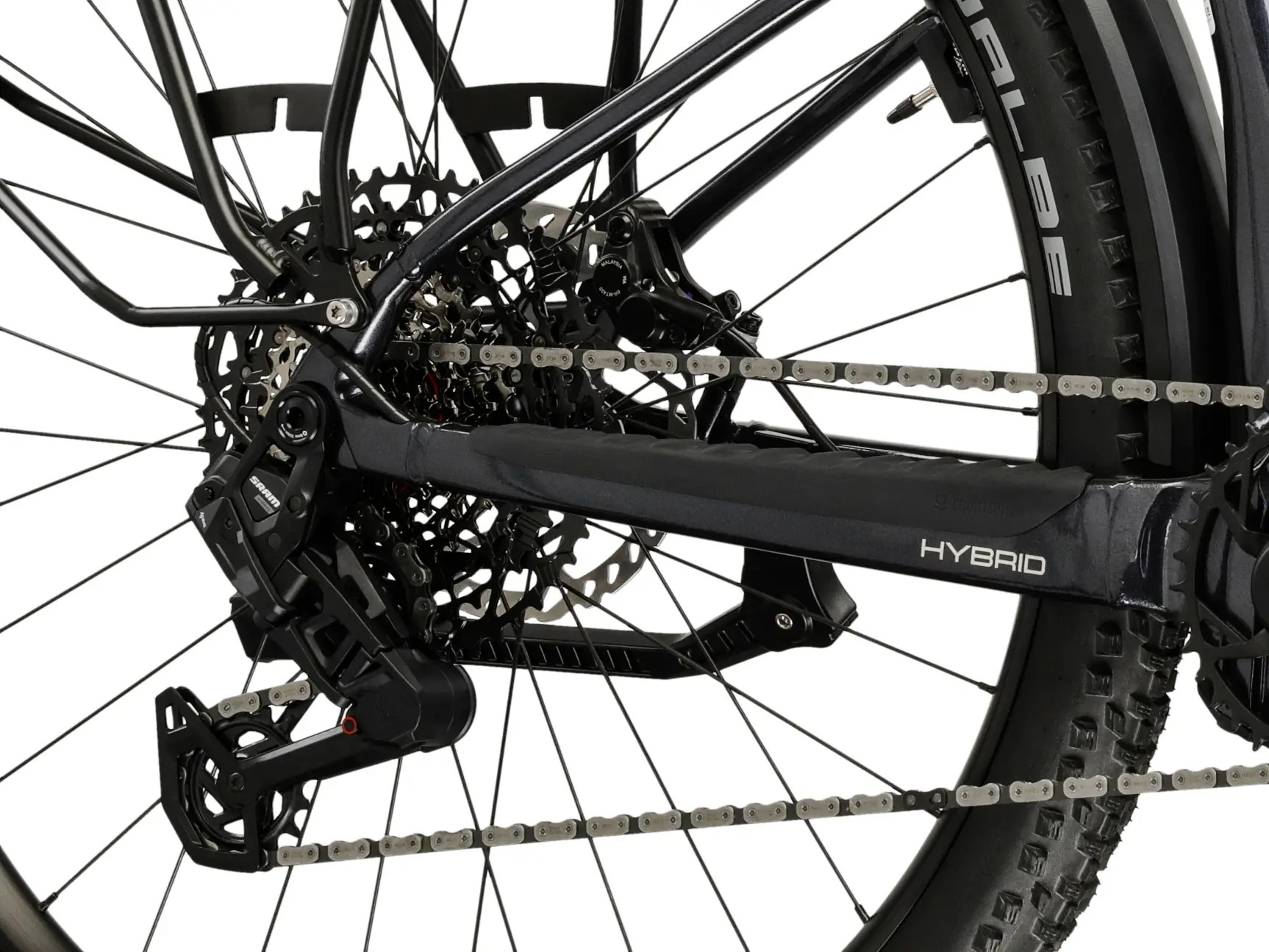

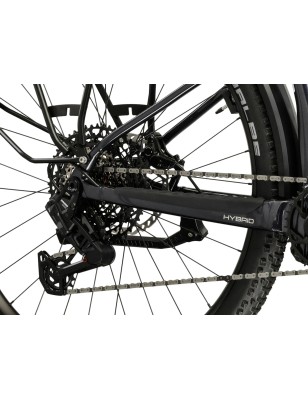

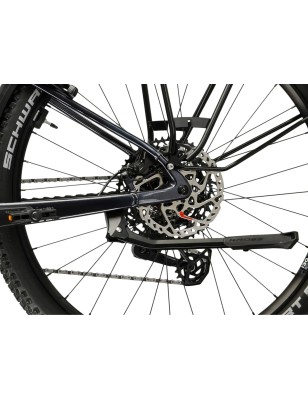

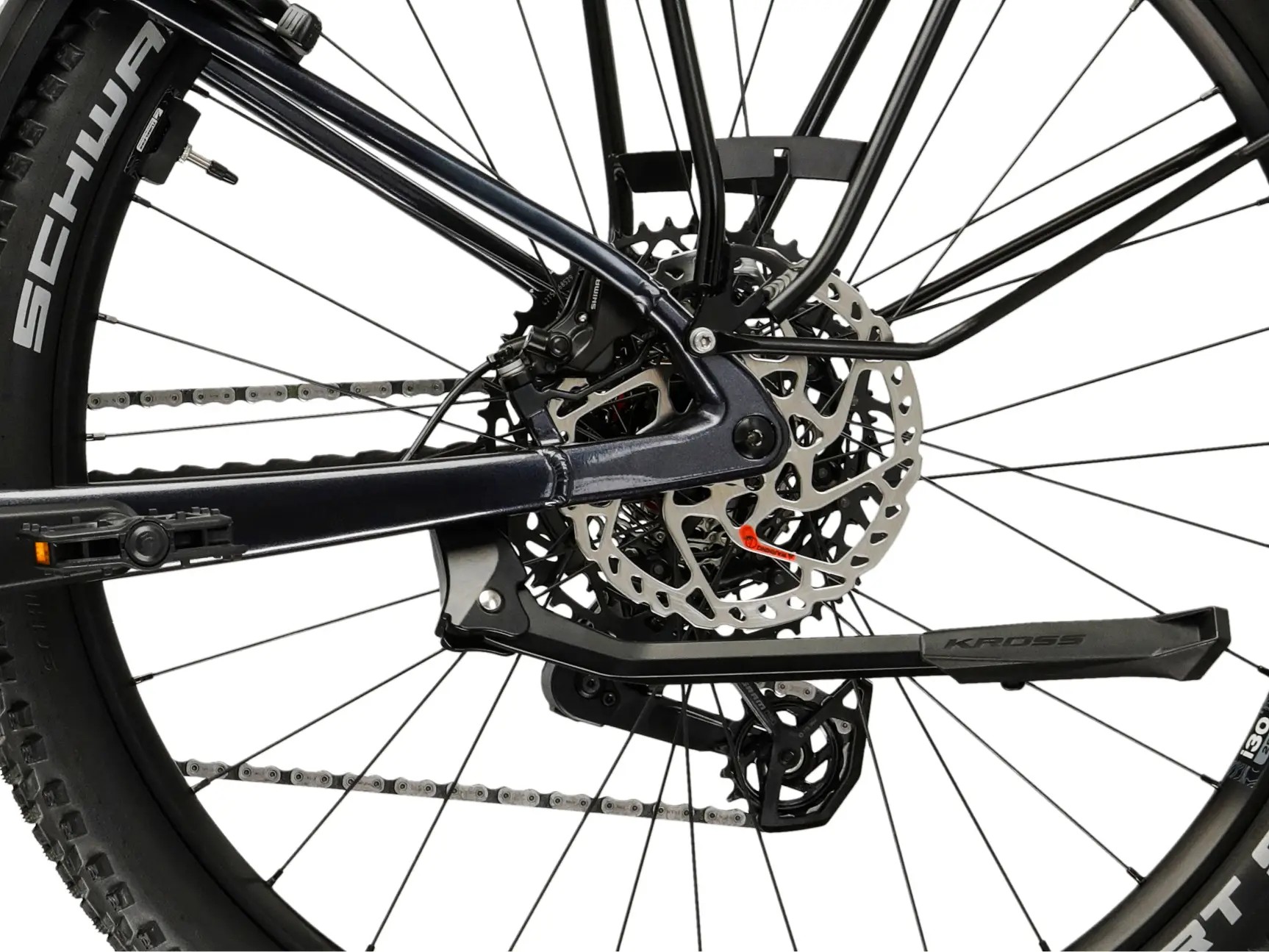

 REAR DERAILLEUR SRAM S1000 EAGLE AXS

 FRONT BRAKE SHIMANO MT420

 REAR BRAKE SHIMANO MT402

 BRAKE LEVERS SHIMANO MT402 ABS

 BRAKE DISCS SHIMANO RT66 203

 SHIFTERS SRAM AXS POD

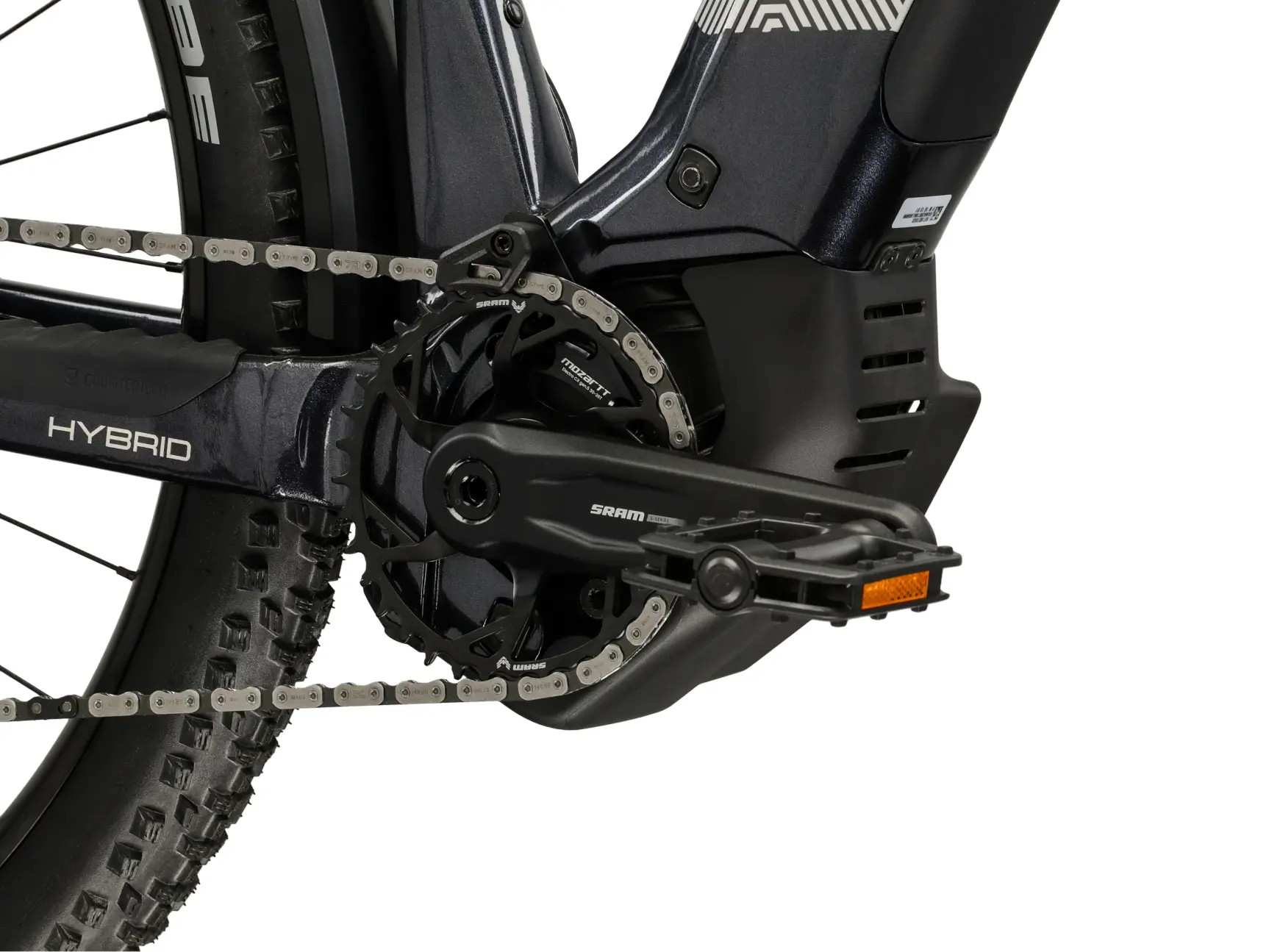

 CRANKSET SRAM S1000

 SPROCKETS 36T

 SRAM EAGLE 70 T-TYPE SRAM GX EAGLE

 CASSETTE/FREEWHEEL SRAM XS 1270

 CASSETTE/FREEWHEEL RANGE 10-52T

 WHEELS

 FRONT HUB WTB PROTERRA TOUGH I30

 REAR HUB WTB PROTERRA TOUGH I30

 RIMS WTB SPORTTERRA TOUGH I30 TCS

 TIRES SCHWALBE SMART SAM 27,5/29X2,25

 COMPONENTS

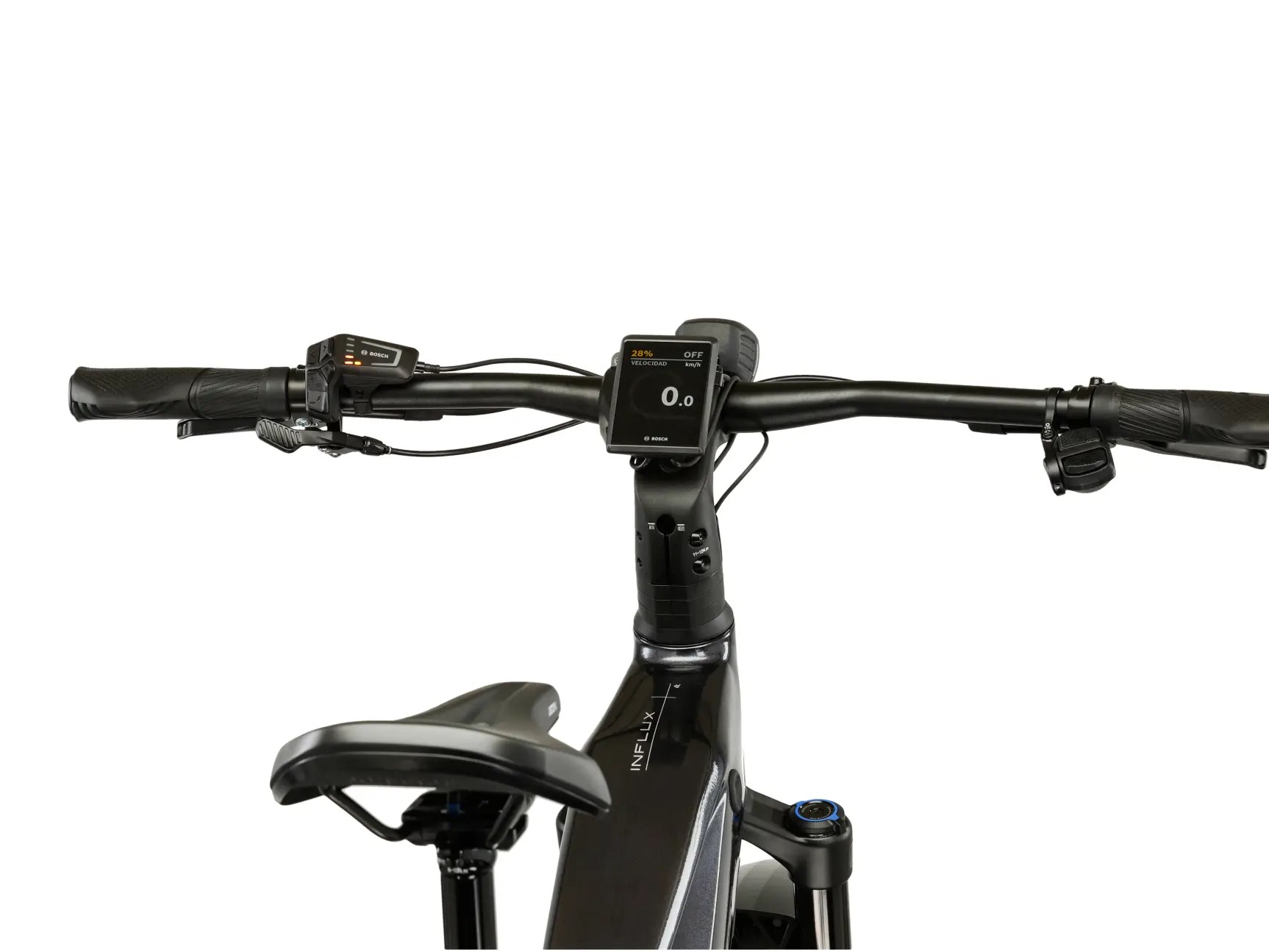

 HANDLEBAR ALUMINIUM 760/31,8

 HANDLEBAR STEM TRANZ-X JD 60-70MM/31,8

 SEAT POST ALUMINIUM 31,6X405MM

 HEADSET FP-HW23

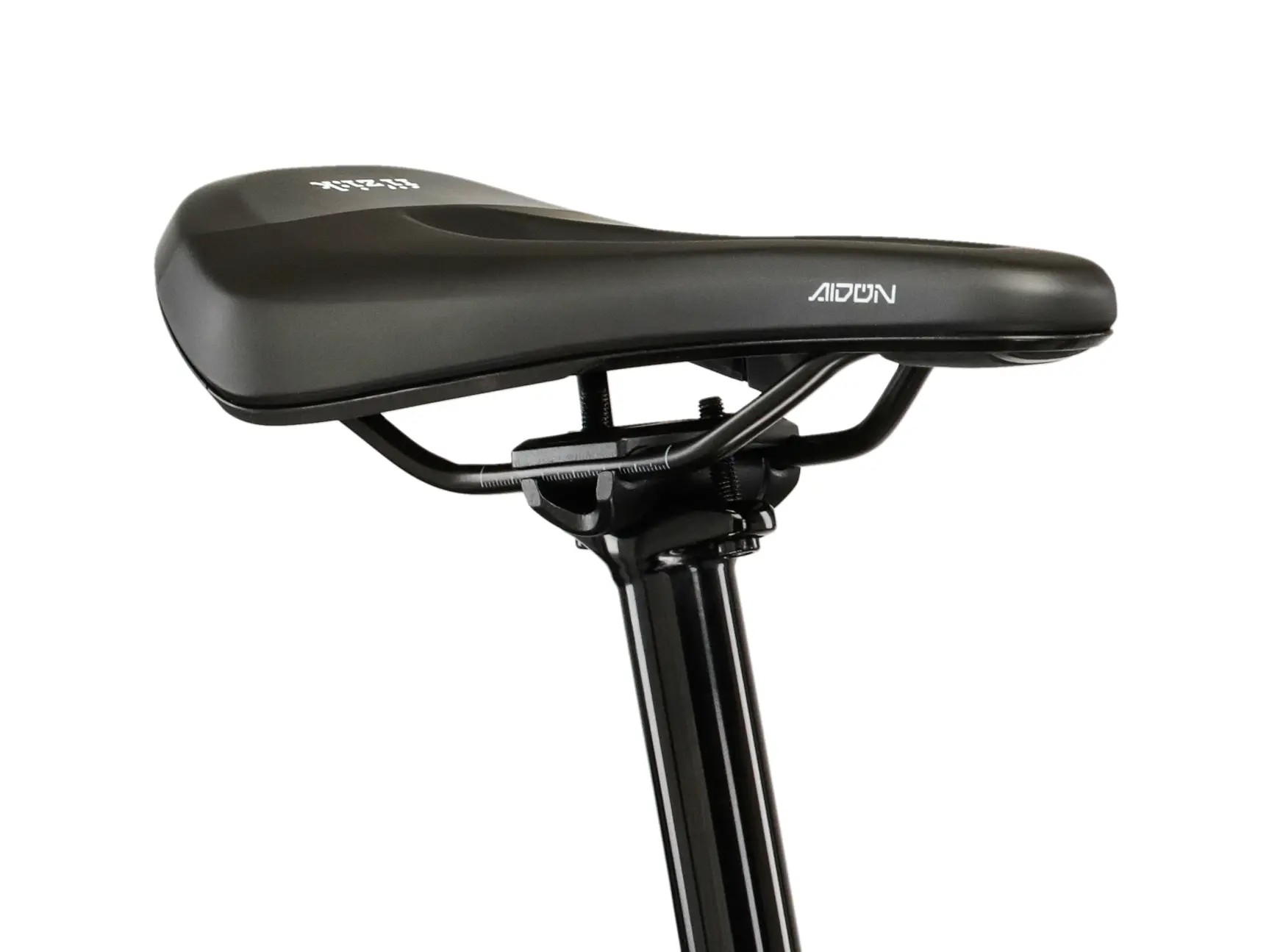

 SADDLE FIZIK AIDON X5

 GRIPS WITTKOP MEDICUS ERGO

 PEDALS MATERIAL

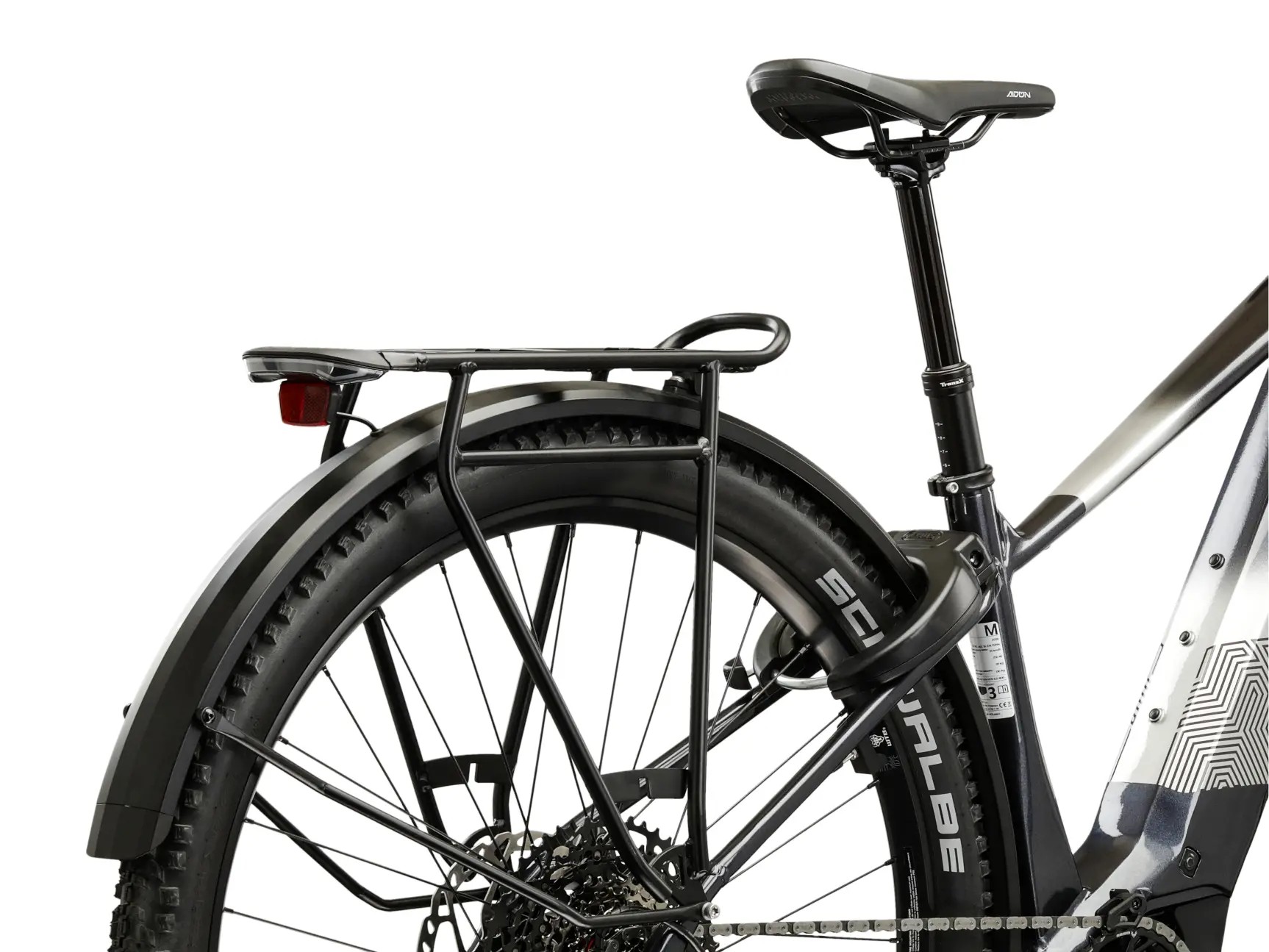

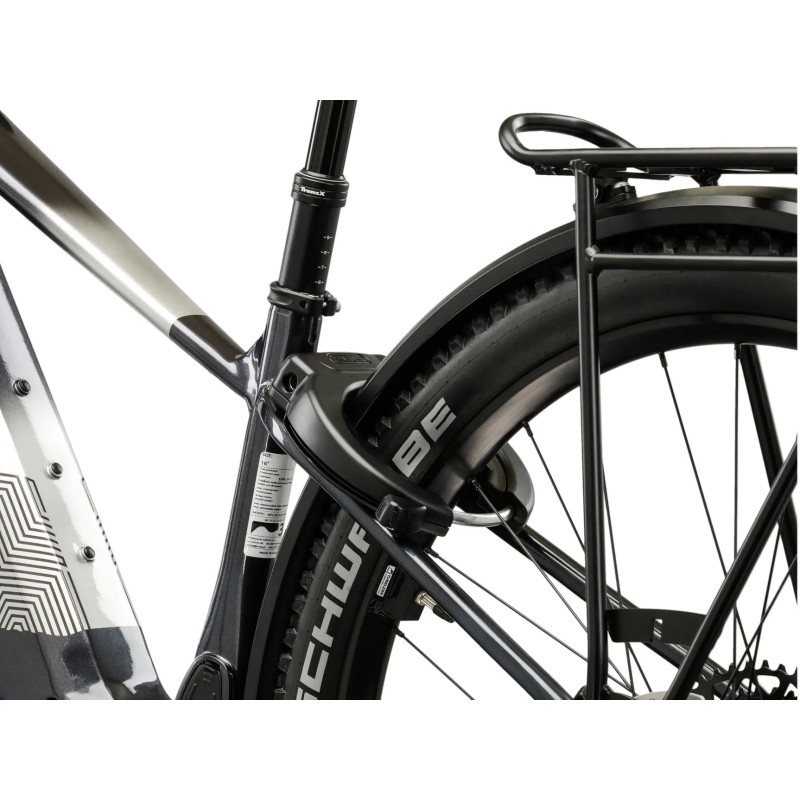

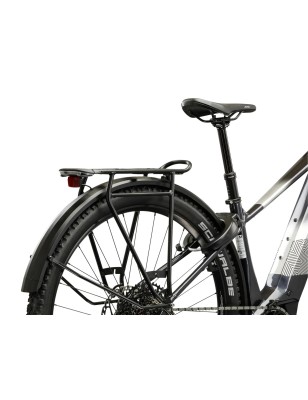

 CARRIER STANDWELL ALU MIK HD

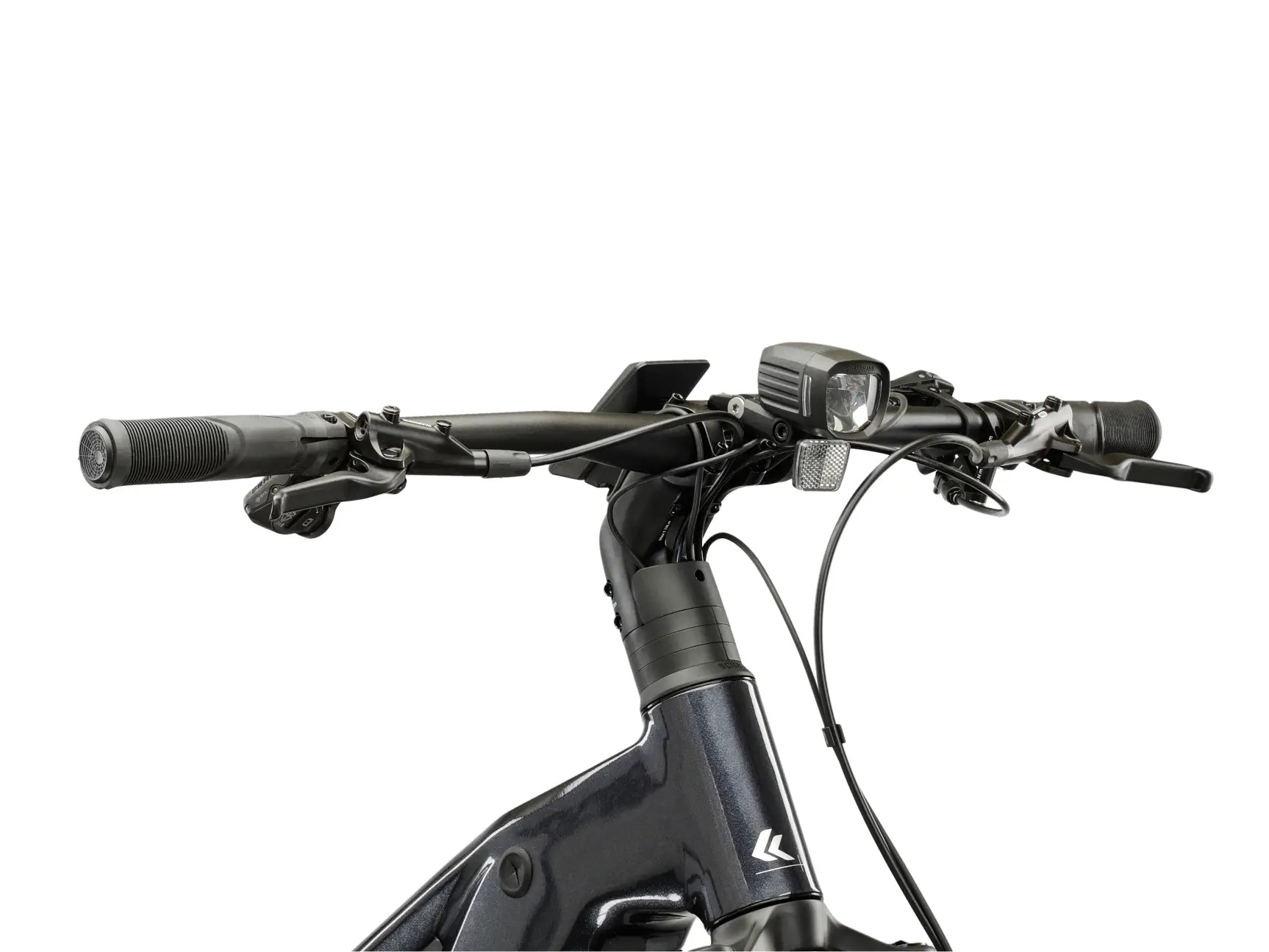

 FRONT LIGHT HERMANS NORDIC E-BIKE

 MUDGUARDS ALUMINIUM

 BATTERY BOSCH POWERTUBE 800

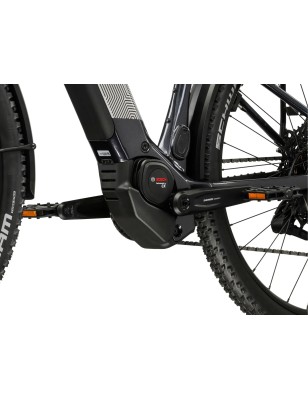

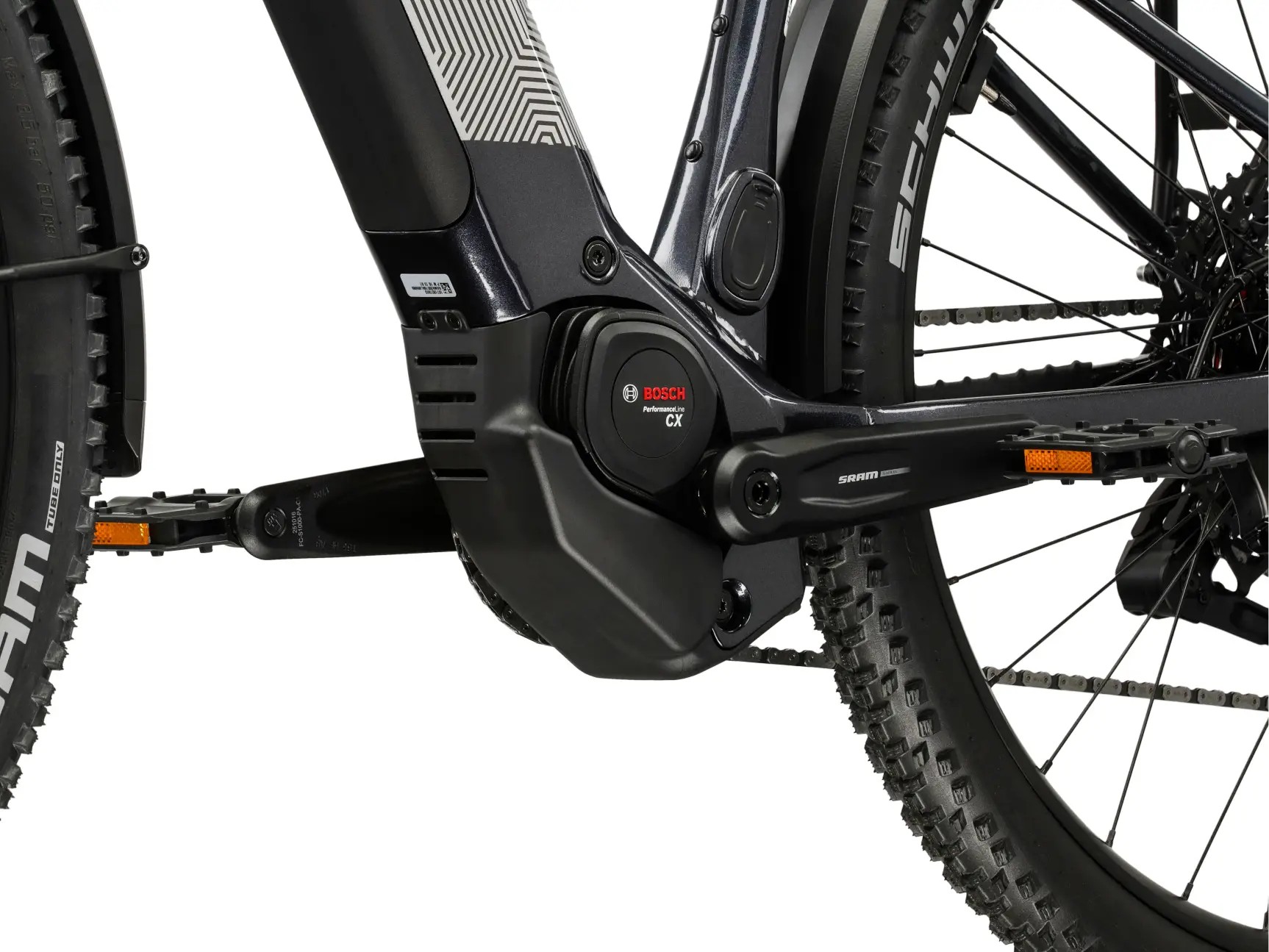

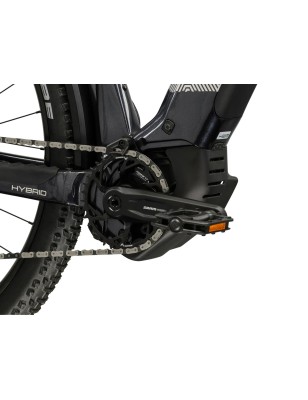

 ENGINE BOSCH POERFORMANCE LINE CX

 DISPLAY BOSCH KIOX 500

 GEOMETRY

 SIZE S M L

 FS - FRAME SIZE* 15 16 18

 ST - SEAT TUBE LENGTH** 380 410 450

 TT - TOP TUBE LENGTH** 594 605 627

 HT - HEAD TUBE LENGTH** 140 160 170

 SA - SEAT TUBE ANGLE*** 74,5 74 74

 HA - HEAD TUBE ANGLE*** 67,5 67,5 67,5

 CS - CHAINSTAY LENGTH** 457 475 475

 WB - WHEELBASE** 1164 1187 1204

 REACH** 419 420 438

 STACK** 631 646 660

 BB DROP** 45 45 45
